Product Description产品描述

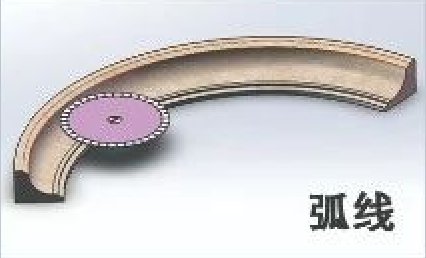

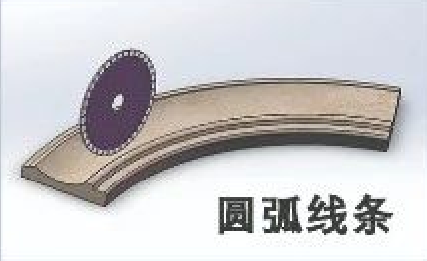

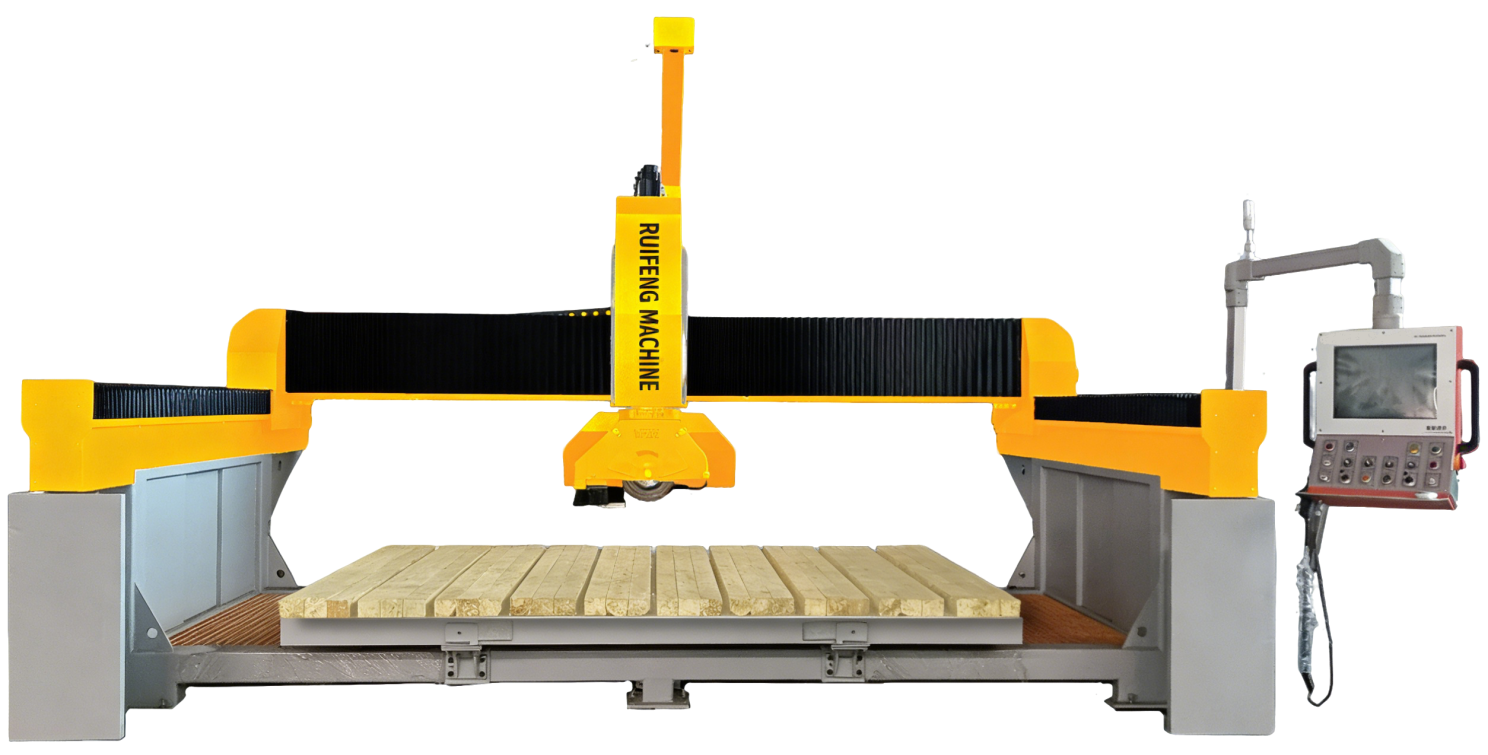

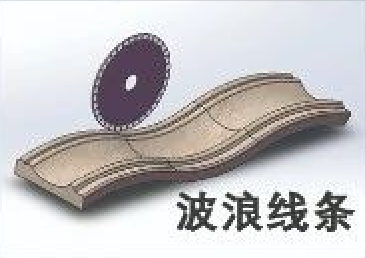

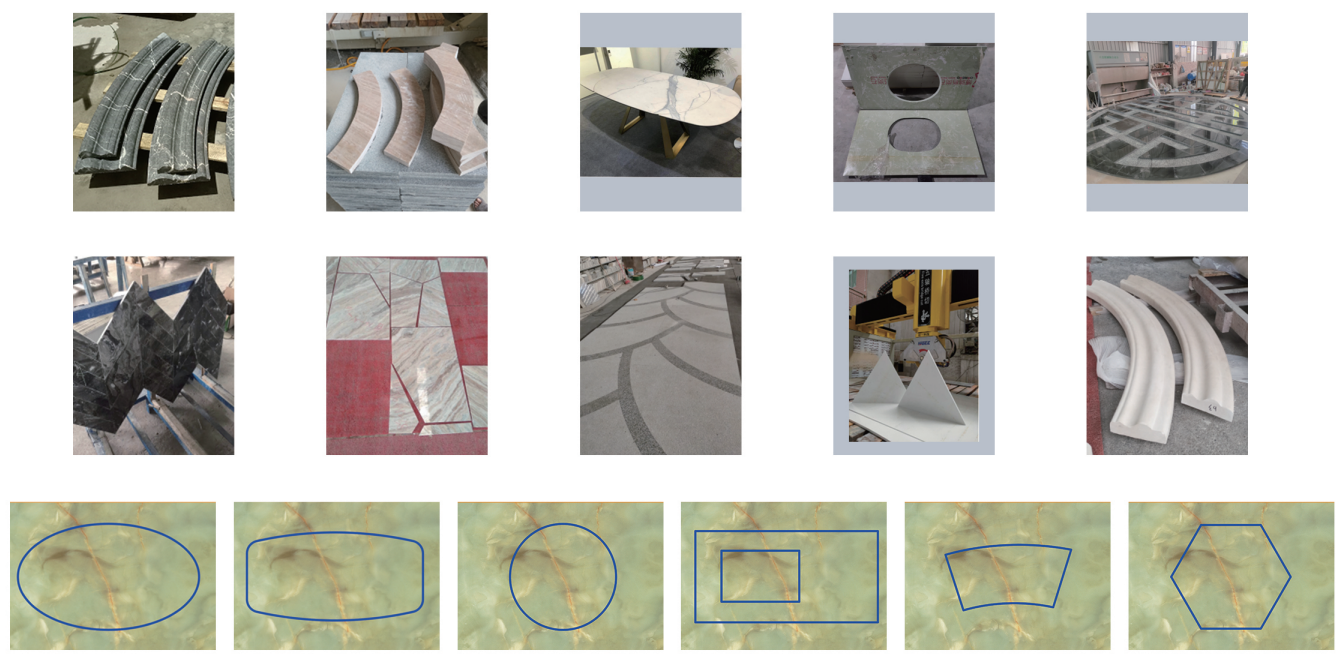

This machine is an integrated multifunctional 5 axis bridge cutting machine, which is used for cutting and profiling of specification plates and various special-shaped shapes (such as arc line, straight line, special-shaped line, villa window line, Garden arc plate, garden square mosaic and other special-shaped processing): it has the advantages of high speed, low processing cost, high cutting precision, simple and intelligent operation. It is suitable for the processing of various stones such as rock cutting plate, marble, granite, quartz stone and granite. It is the first choice for stone processing enterprises such as engineering, garden and process processing Processing equipment.
R Intelligent processing cross-border protection, to prevent the mechanical impact due to excessive design documents processing.
R Diversity control can separately control the processing speed, idling speed, cutting speed,greatly improving the processing speed, greatly improving the quality of processed product and processing efficiency.
Technical Data
| Appellation类目 | Project 明细 | Unit 单位 | CNC-400 |
| The machine
stroke 机器行程 |
X axis stroke X轴行程 | mm | 3200 |
| Y axis stroke Y轴行程 | mm | 2000 | |
| Z axis stroke Z轴行程 | mm | 400 | |
| A axis stroke A轴行程 | N° | 0-90 (Automatic) | |
| C axis stroke C轴行程 | N° | ±361 | |
| Cutting thickness 切割厚度 | mm | 0-80 | |
| General configuration
通用配置 |
Fast running speed 空转速度 | m/min | 25 |
| Spindle power 主轴电机 | kw | 15 | |
| Spindle speed 主轴转速 | rpm | 0-4000 | |
| Saw blade diameter 锯片直径 | mm | 350–400 | |
| Platform size 工作台尺寸 | mm | 3200×2000 | |
| Tilt degree 翻板角度 | N° | 0-85 | |
| Total power 总功率 | kw | ≈ 23 | |
| Total weight 总重量 | kg | ≈ 6000 | |
| Equipment dimensions 外型尺寸 | mm | 6000×3300×4400 | |
| Functional configuration
功能配置 |
Camera function 摄像机 | – | √ |
| Blade measurement function 对刀仪 | – | √ | |
| Suction cup function 吸盘 | – | ×（Optional） | |
| Milling cutter function 侧铣刀 | – | √ |
